VFFS Series

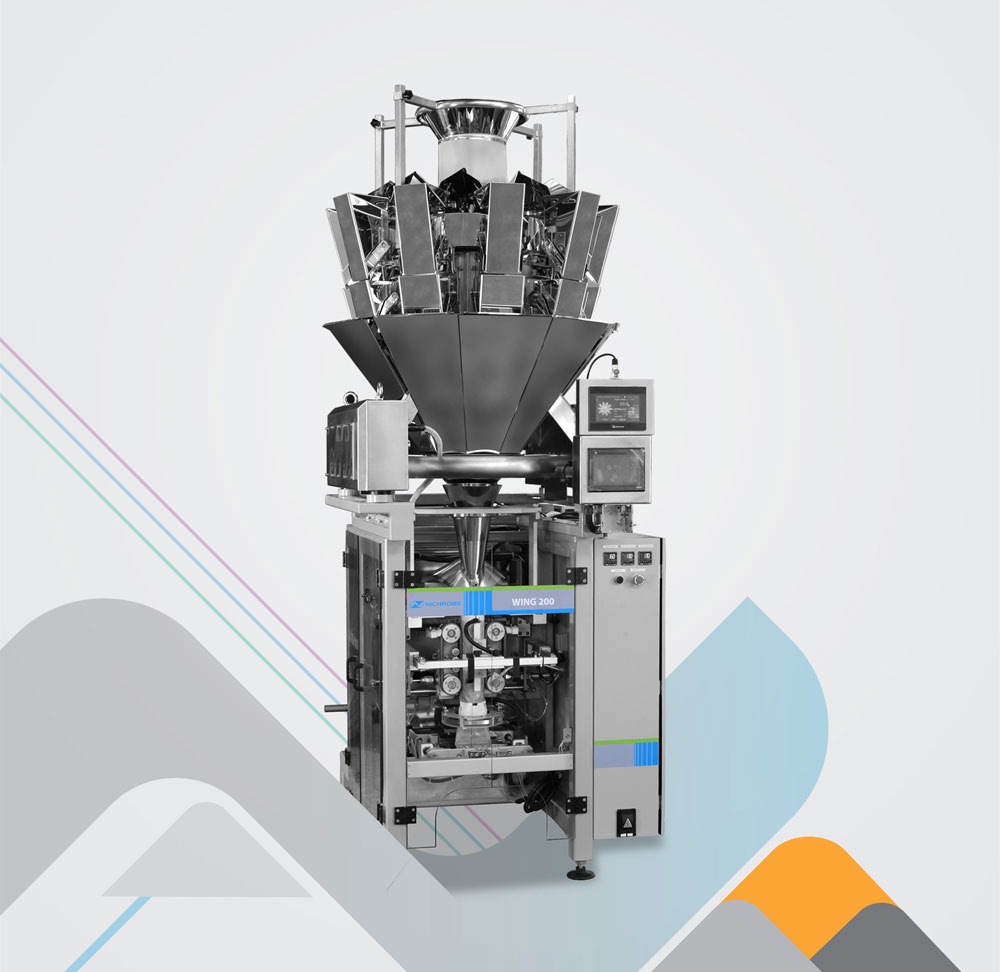

Wing 200 E-Line Snack Pack

Exclusive packaging solution for startups and small-medium enterprises

Discover all the superior expertise and reliability of Nichrome, in a compact, affordable format - designed to fit your space, budget and performance expectations. After all, as India’s leading packaging solutions provider, Nichrome understands your products and your needs.

Applications

Pasta, Biscuits, Dry Fruits, Grains, Pulses, Sugar

Chips

Kurkure

Namkeen

Candies

POUCH FORMAT

...

CSPP

...

CSPP chain of Pouches

Technical Specifications

Max. weight

1000 g

Weighing accuracy

± 0.3 g - 1.5 g

Bag width

60 - 200 mm

Bag length

50 - 230 mm

Packaging film materials

Heat sealable laminate from 50 - 80 micron

Film drive power

Servo driven

Air consumption

12.5 M 3/hour - 7.5 CFM

Max.packing speed

80 bags/min (bagger speed)

Connected load

5 kW with filler

Machine Dimension

1200 W x 2120 (depth) x 2700 H with 10 head MHW

1200 W X 1800 (depth) x 1500 H basic machine
