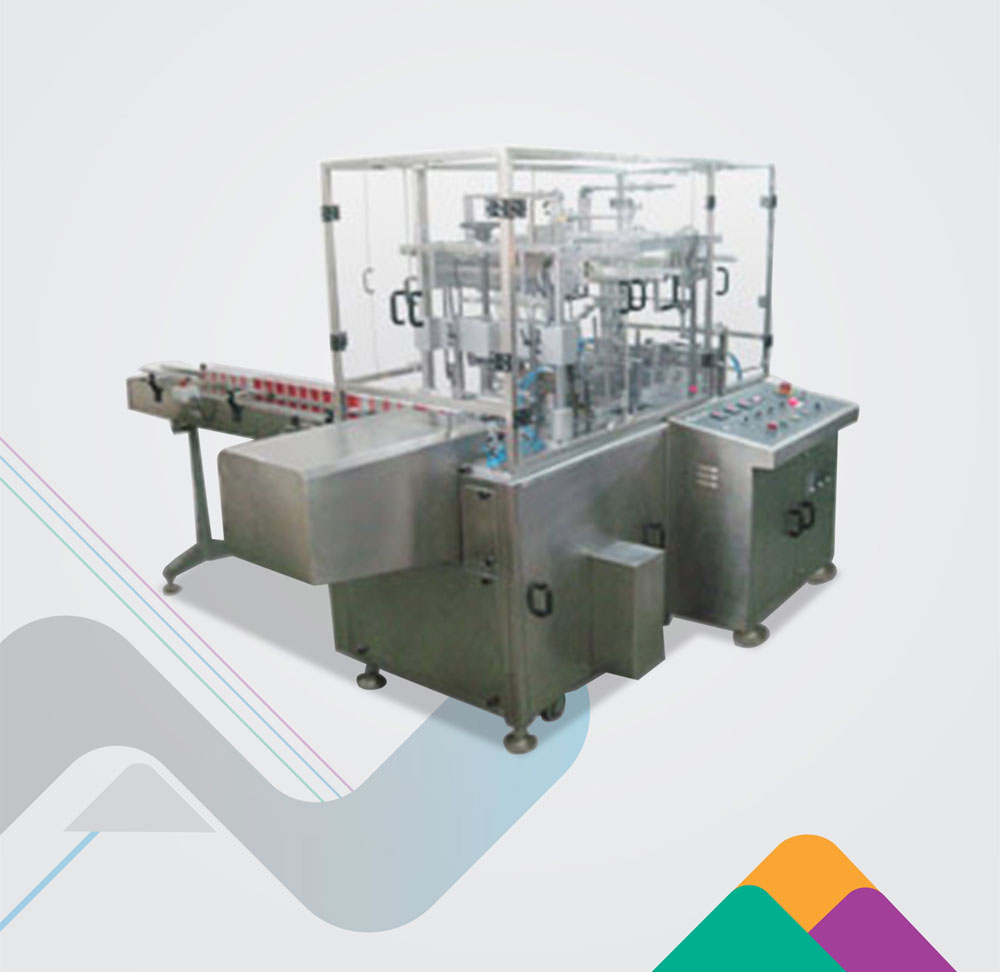

Automatic Pouch Collation & Flow Wrapping(Flexiwrap ST)

With Nichrome’s new Secondary Packaging Solution – Flexiwrap ST, you can integrate with existing form fill seal / FFS machine to collate/bundle and flow wrap individual pouches in to Distributor Packs / Retail Ready Packs.

Automatic counting
Automatic stacking
Automatic flow wrapping

Features:

High speed stacking & wrapping for single & double head machine for individual pouches of 50gm to 200gms
Auto pouch stacking as per desired matrix
Easy changeover
Single operator driven system
System can be align in linear or right angle direction as per floor space
PLC controlled line
Digital LCD touch screen displaying & setting.
Safety enclosures with interlocks for rotary parts

Applications

Coffee

Spices

Tea

Milk Powder

Instant Mixes

Pouch FORMATS

Center seal pillow pouch

Technical Specifications

Working Principle

Automatic pouch collating / bundling & flow wrapping system

Single primary pouches from VFFS machine are counted
Primary pouch Collation / Bundling takes place depending on desired matrix
Collated stack / bundle of primary pouches are automatically transferred into flow wrap machine
Primary pouch bundle flow wrapped to form secondary pouch

Feeding System

Automatic collation / bundling & insertion flow wrap machine

Case range

SKU (single pouches)	Matrix (Primary pouches X No. of rows = total number of primary pouches in secondary pack)	Weight of Flow wrap pack / Secondary pack
50gm	10 X 2 = 20	1kg
100gm	5 X 2 = 10	1kg
200gm	5 X 1 = 5	1kg

*customization possible

Line Speed

Synchronized to match VFFS machine of speed ofupto80ppm

Supply Voltage

415 V AC 3 Phase 50 Hz

Air Supply

6 Bar

Flow wrap pouch types

CSPP
Gusseted

Product Contact MOC

SS304, SS316

Allied Equipment

Printing
Labelling
HDPE Bag filling
Palletising
Overwrapping/ Stretch Banding/ Shrink Wrapping
