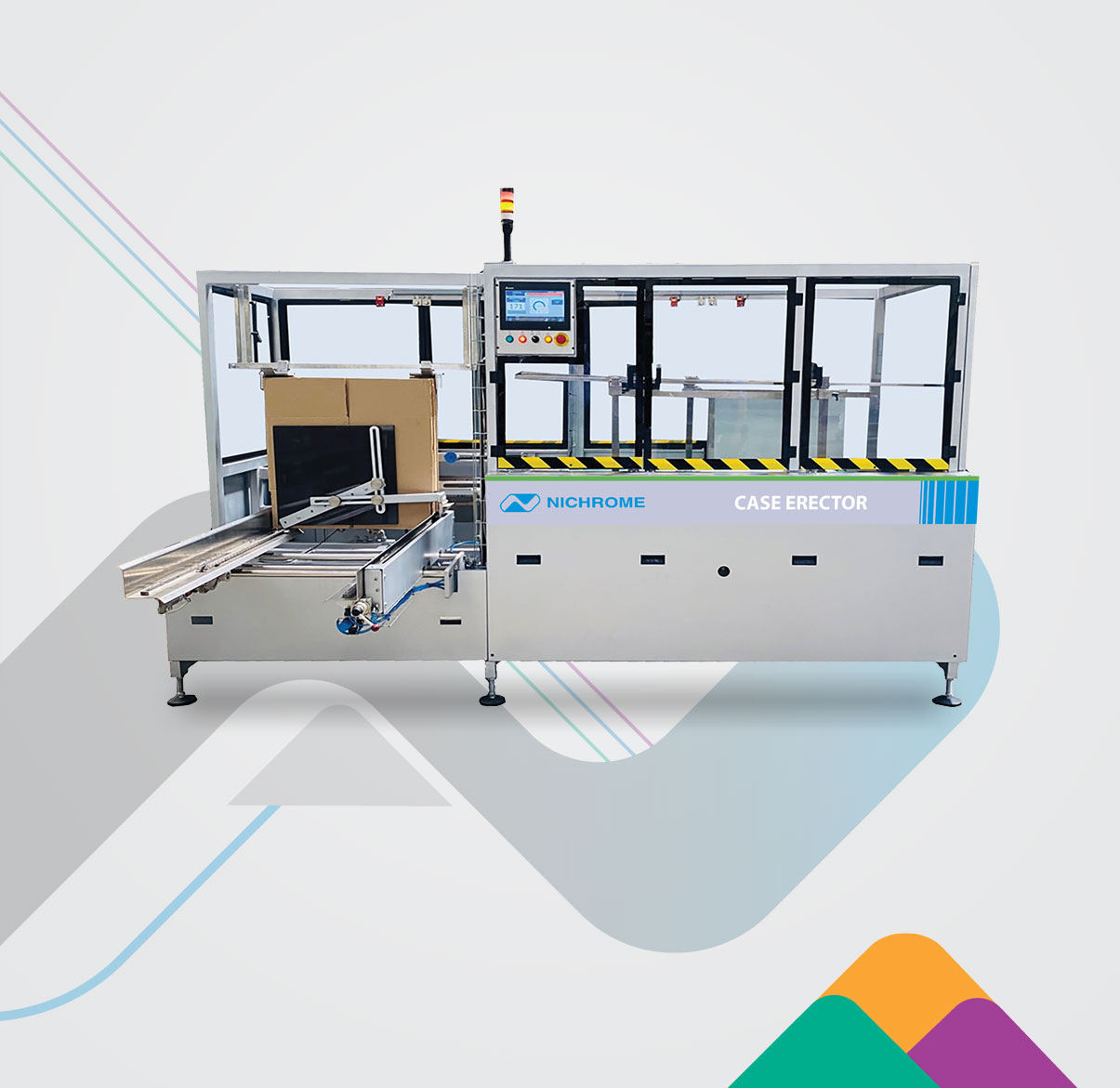

Case Erector

Nichrome’s case erectors are reliable and designed to specifically address the usual problems in automatic erection of cases owing to the quality of the corrugated board and the imperfections in its forming process.

A unique mechanism is incorporated in this machine to positively open the case irrespective of case quality and ensure squareness throughout the forming process.

Features:

  • Positive case opening and forming mechanism
  • Closing of bottom flaps in static position to ensure accurate formation
  • Driven in-feed magazine for positive case transfer
  • Case magazine ergonomically placed at low height for easy walk-in loading
  • Flexible to handle a wide range of case sizes
  • Easy & fool proof adjustments with scales for quick size changes without tools
  • Large case magazine to hold up to 100 cases
  • Clean and ergonomic design with a compact foot print

Applications

Food packaging machine

Food

Pharma packaging machine

Pharma

Non Food packaging machine

Automotive

Other packaging machine

Agro Chemicals

CARTON FORMATS

Powder packaging machine

Technical Specifications

Working Principle

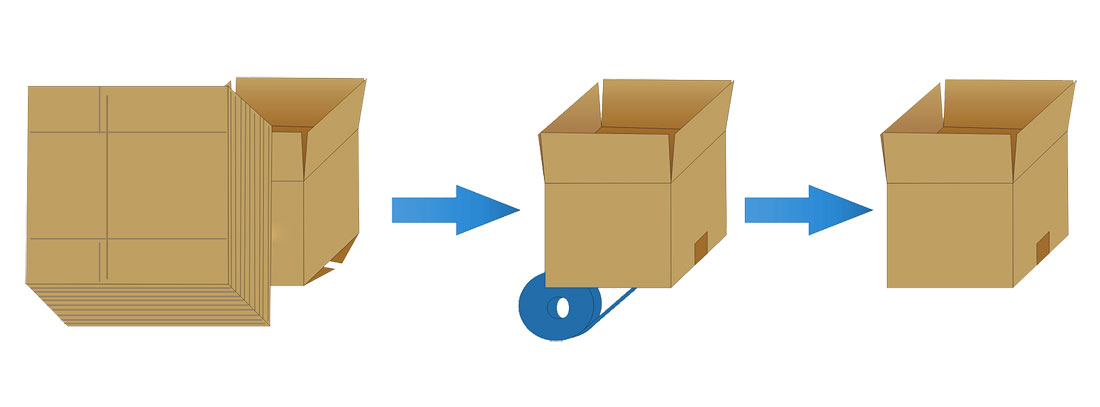

  • Automatic case erection & bottom taping
  • Manual product feeding
  • Top taping – Manual or Auto
Integrated packaging solutions

Feeding System

  • Manual product feeding

Case range

Case Range in machine

External Dimension of Formed case in mm Min Max
Length 220 600
Width 150 400
Height 150 400

Line Speed

Upto 12 cpm

Supply Voltage

415 V AC 3 Phase 50 Hz

Air Supply

6 Bar

Case Closure Type

  • Automatic Bottom Taping
  • Manual or Automatic top taping

Standard Line Dimensions (LxWxH)

825 x 1650 x 1500 mm

Product Contact MOC

SS304, SS316

Allied Equipment

  • Automatic Top Taping
  • Bar Code Scanning
  • Printing
  • Labelling
  • Palletising
  • Overwrapping/ Stretch Banding/ Shrink Wrapping

End-to-End Solutions
