Semi Automatic Case Packer (Smart Case Packer)

Our Smart Case Packer is a semi-automatic solution for your carton bundling and case packaging needs.

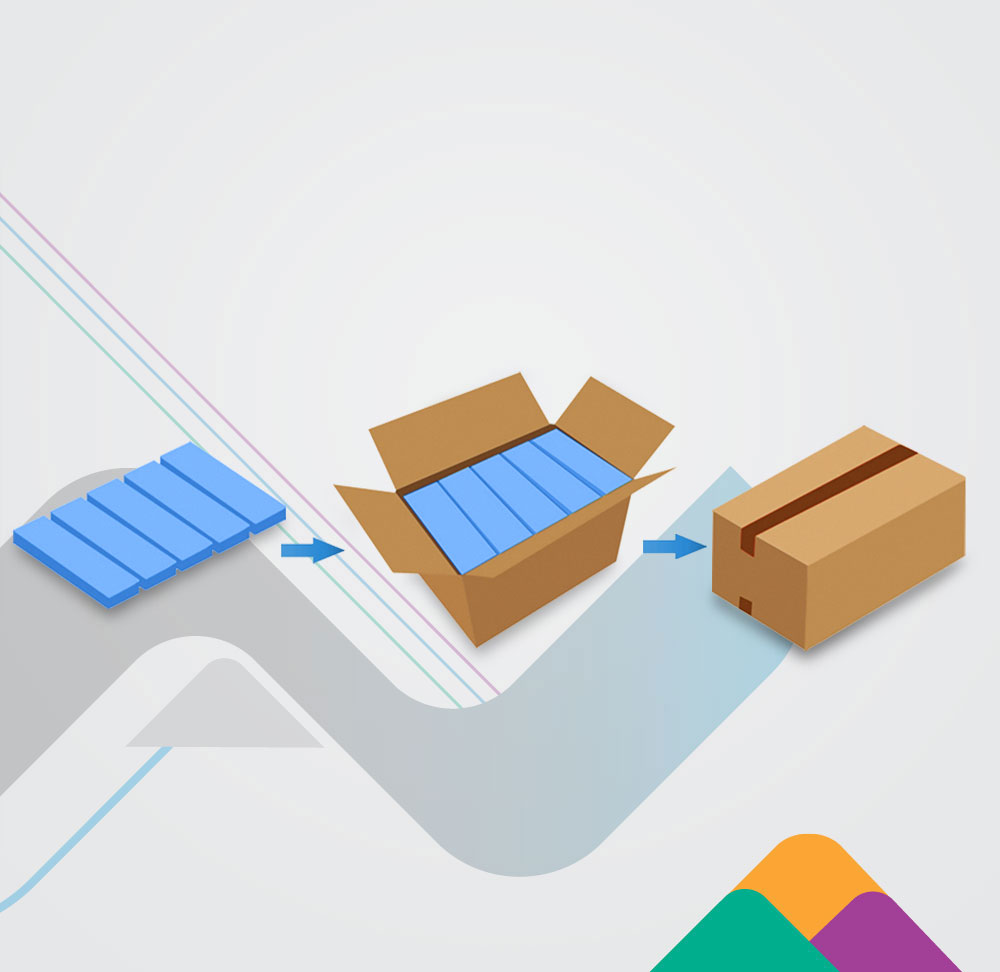

Simply insert a pre-formed case on to the machine and it inserts the bundled cartons automatically!

Cartoning counting, collating/bundling and insertion into case is fully automatic.

Features:

  • Ergonomically designed with robust construction
  • PLC controlled with HMI
  • Highly Flexible – designed for quick & easy product change-overs
  • Carton collation monitoring
  • Automatic collation of cartons and automatic insertion of collated carton in to case
  • Sensors for product and safety monitoring
  • Speed is upto 3 cases per minute (*can vary depending on collation matrix & carton dimensions)

Applications

Food packaging machine

Food

Pharma packaging machine

Pharma

Non Food packaging machine

Automotive

agro chemicals packaging machine

Agro Chemicals

Non Food packaging machine

Non Food

CARTON FORMATS

Powder packaging machine

Technical Specifications

Working Principle

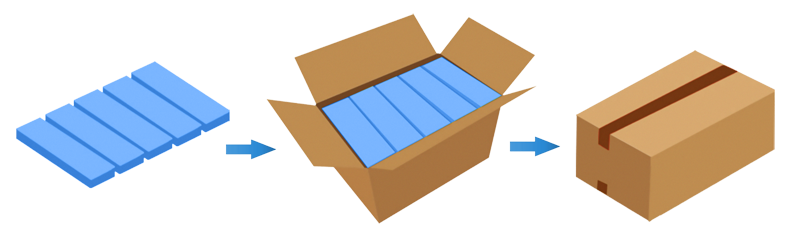

Insert a pre-formed case with bottom taping on to the machine and it does the rest!

Cartoning collating/bundling and insertion into case is fully automatic.

  • Place pre-erected carton with bottom taping onto machine
  • Product (only rigid carton) are collated and inserted into Case
  • Top taping – Manual or Auto

(This solution is designed only for packing rigid cartons).

Feeding System

  • Automatic carton collation & insertion

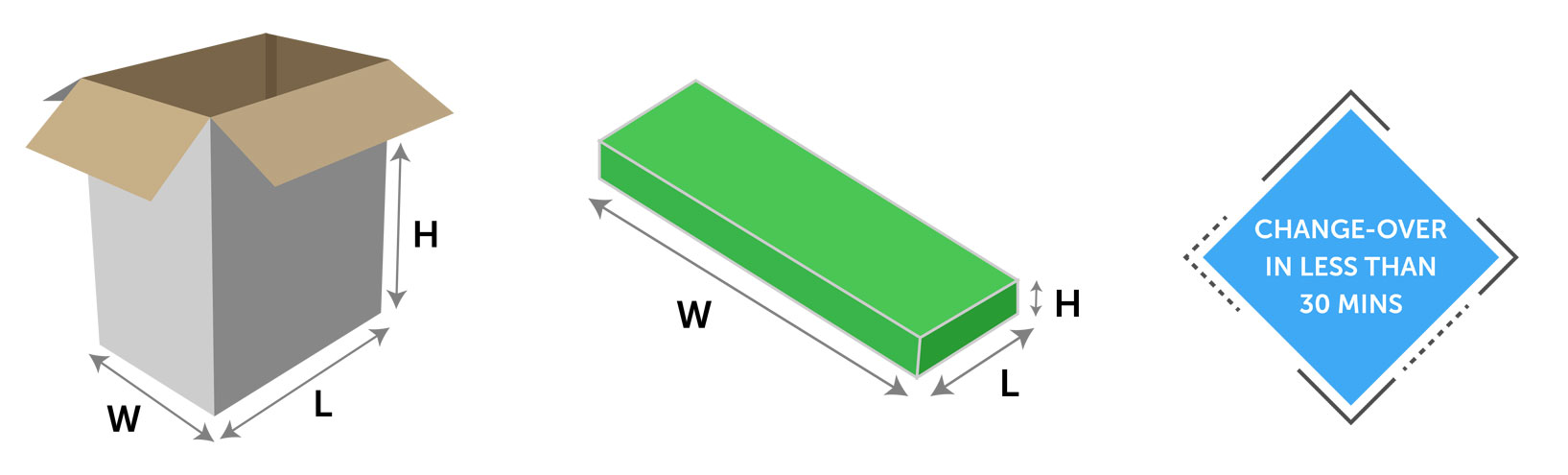

Case range

Size Range of Case/Shipper

Size in mm

Length Width Height
Min 250 150 150
Max 580 350 320

Size Range of Carton

Size in mm

Length Width Height
Min 50 30 15
Max 320 575 65/100

Line Speed

Upto 3cpm

Supply Voltage

415 V AC 3 Phase 50 Hz

Air Supply

6 Bar

Case Closure Type

  • Pre-formed Case with bottom taping
  • Top Taping (Manual / Auto)

Standard Line Dimensions (LxWxH)

4200 x 1800 mm

Product Contact MOC

SS304, SS316

Allied Equipment

  • Automatic Top Taping
  • Bar Code Scanning
  • Printing
  • Labelling
  • Palletising
  • Overwrapping/ Stretch Banding/ Shrink Wrapping
