Modified Atmosphere Packaging MAP Tray Sealing Machine

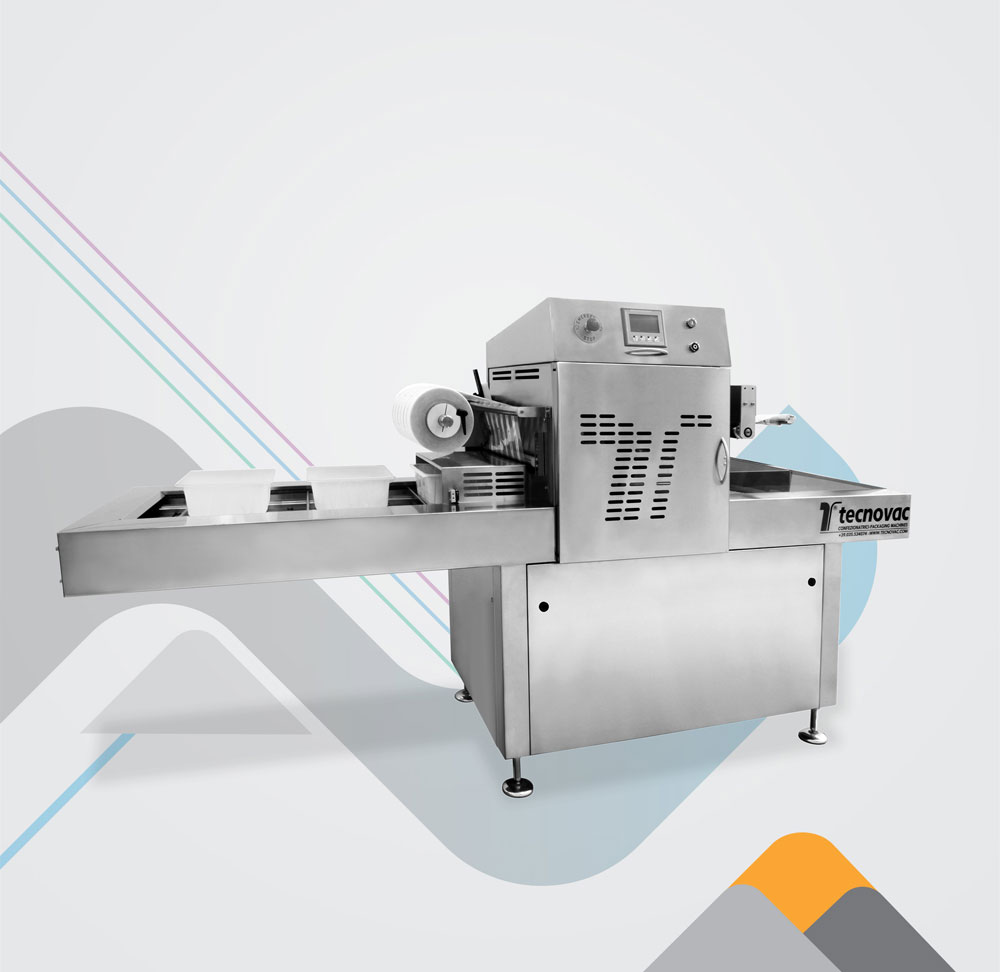

ATHENA TRAY SEALER

Nichrome introduces Athena modified atmosphere food tray sealing packaging machine from Tecnovac, Italy. Athena is able to seal, pack in a protective atmosphere (vacuum + gas) or with "Skin effect" all types of trays or jars. Due to its strong stainless steel structure and easy maintenance, Athena is idealpackaging for use in small and medium sized companies.

For marketers of cut fruits & vegetables, meat & fish, namkeen & sweets and even ready-to-eat meals like biryani, ATHENA ensures the products stay safe and hygienic till they reach the consumer's table.'

Applications

Cut Vegetables & Fruits

Meat & Fish

Ready-to-eat Meals

Namkeen & Sweets

Technical Specifications

Model	Athena	Athena XL	Athena Dual Drive	Athena H250
Machine dimensions	2674.5x1015x1402 h mm	2674.5x1015x1402 h mm	3331.5x1015x1534.5 h mm	4326x1015x1637 h mm
Loading Area	750mm	750 mm	900 mm	1987 mm
Working height	900 mm	900 mm	900 mm	984 mm
Approx. Weight	600 kg	650 kg	800 kg	700 kg
Production up to	15 cycles/min.	15 cycles/min.	15 cycles/min.	15 cycles/min.
Max. film width - diameter - Mandrel	480/250/76 mm	480/250/76 mm	480/250/76 mm	480/250/76 mm
Vacuum pump with digital	100 mc/h*	100 mc/h*	200 mc/h* outside the machine	100 mc/h*
Gas flushing appliance with gas tank	standard	standard	standard	standard
10 programs to store	standard	standard	standard	standard
Compressed air**	160 - 500 Nl/min 6 bar**	160 - 500 Nl/min 6 bar**	300 - 900 Nl/min 6 bar**	400 Nl/min 6 bar**
Power supply	400V 3 Phase, 50 Hz neutral & grond TN-S	400V 3 Phase, 50 Hz neutral & grond TN-S	400V 3 Phase, 50 Hz neutral & grond TN-S	400V 3 Phase, 50 Hz neutral & grond TN-S
Power consumption up to	4.5 Kw max.	5.3 Kw max.	9 Kw max.	5.5 Kw max.

Food

Pharma

Non Food
