VFFS SERIES

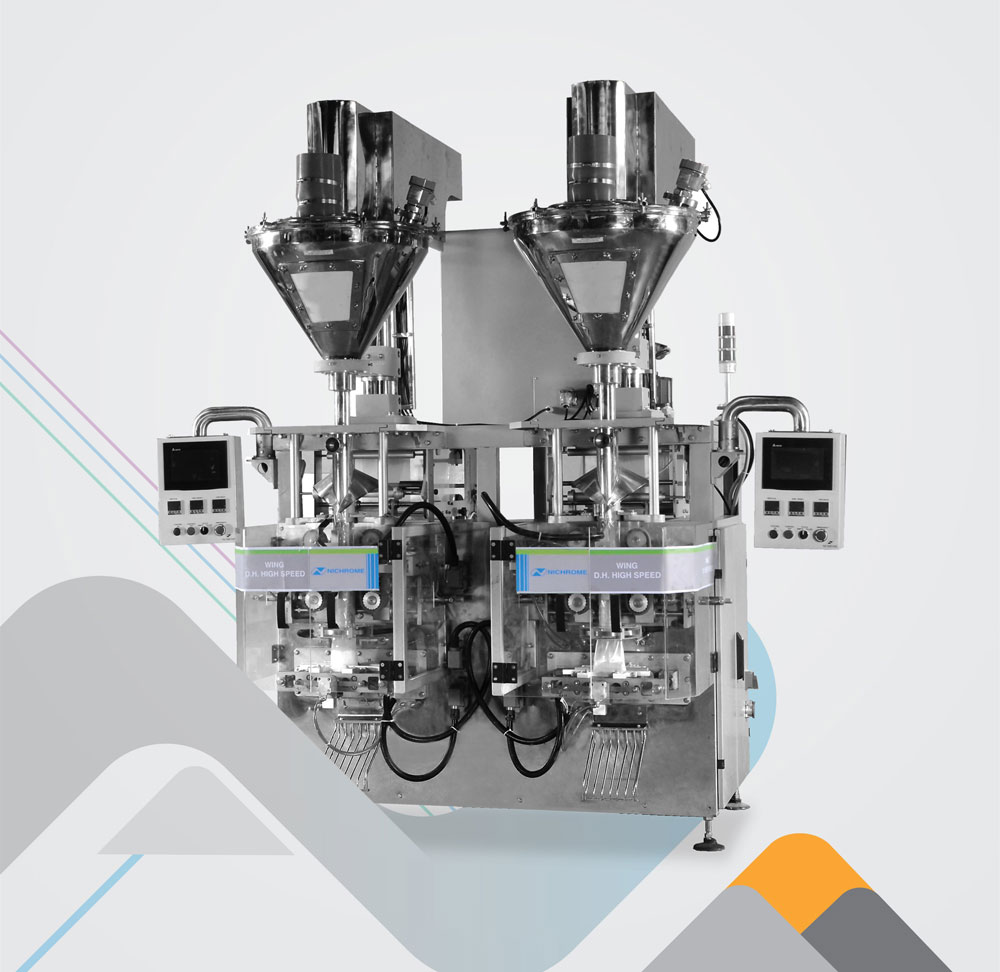

High Speed Double Head Wing Servo Auger Filler
THE DOUBLE HEAD WING SERVO AUGER FILLER MACHINE is a high-speed, reliable packaging solution for spice powders (chilli, turmeric, coriander, sambar, etc.), nutraceutical powders (premix, health drinks, energy drinks, etc.) and beverages (coffee, dairy whitener, etc.).
With its double head system, it delivers output of 200 packs per minute, and there is flexibility to pack different pack sizes and products simultaneously. Other important features include servo controlled auger filler for precision & accuracy, hygienic construction compliant with HACCP & GMP standards and perforation system to produce chain of pouches.
Applications
Spices:Seasoning Powder, Chole Masala, Cardamom Powder,Sambar Masala
Nutraceutical Powders:Health Drink Powder, Energy Drink Powder
POUCH FORMAT
CSGP
CSPP
Technical Specifications
Rated system Output (max. upto) |
200 packs per min | 100 packs per min (Depends on product flow properties & pack size) |
Quantity |
10 g - 200 g |
Pouch Formats |
Center Seal Pillow Pouch |
Packaging Material |
Heat Sealable Laminate Films of Different Structures |
Min. Pouch Size |
50 mm W x 70 mm L |
Max. Pouch Size |
140 mm W x 210 mm L |
Maximum Roll Diameter |
350 mm |
Supply Voltage |
Stabilized 415 V-AC, 3 Phase, 50 Hz |
Connected Electrical Load |
8 KW | 4KW |
Air Consumption |
60 cubic meter/hr @ 6 bar | 30 cubic meter/hr @ 6 bar |
Overall Dimention |
2172 mm W x 1642 mm D x 2396 mm H 1000 mm W x 1642 mm D x 2396 mm H |
