Filpack Series

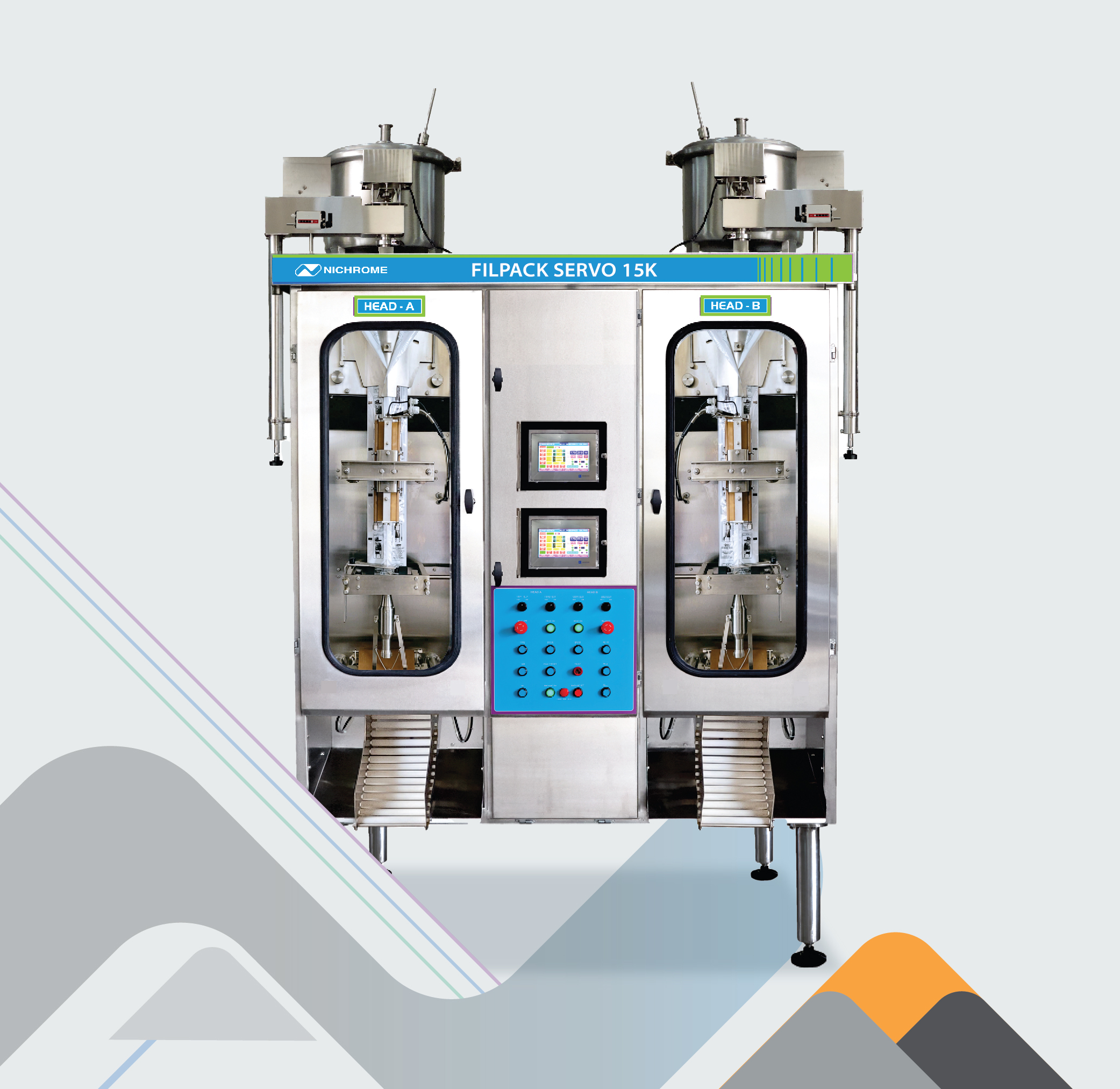

Filpack Servo 15K

This machine is the fastest milk pouch packaging machine, with a speed of 15,000 packs/hour. It can pack CSPP pouches of 200 ml, 500 ml and 1000 ml with equal ease and accuracy.

FILPACK SERVO 15K is a heavy-duty machine with simple maintenance-friendly construction. It is built for hygiene with product contact parts of stainless steel and a UV film sterilisation system for the packaging material.

Independent balance tanks offer the flexibility to handle single or different products simultaneously.

Applications

Plain Milk

Flavored Milk

Lassi

Juice

Mineral Water

POUCH FORMAT

CSPP

Technical Specifications

Model	FILPACK SERVO - 15K
Machine Dimensions	1810mm(W), 1360mm(D), 2770mm(H)
Pack Quantity Range	200 ml to 1000 ml
Accuracy	Lesser than ± 0.5 %
Packaging Material	LDPE/LLDPE
Film Width	325 +2/-0 mm, Reel Dia: 650 mm max
Jumbo Roll up to 100 kg can be loaded
Package Style	Center sealed pillow pouch
Speed	Up to 15000 pouches/hour for up to 250 ml pouches Up to 12000 pouches/hour for up to 500 ml pouches Up to 6600 pouches/hour for 1000ml pouches
*Output & accuracy is dependant upon film and product*
Power	400 V ±1% AC 3 phase, 50 Hz, 4 wire (stabilized)
Power Consumption	1.5 KWH unit appx
