VFFS SERIES

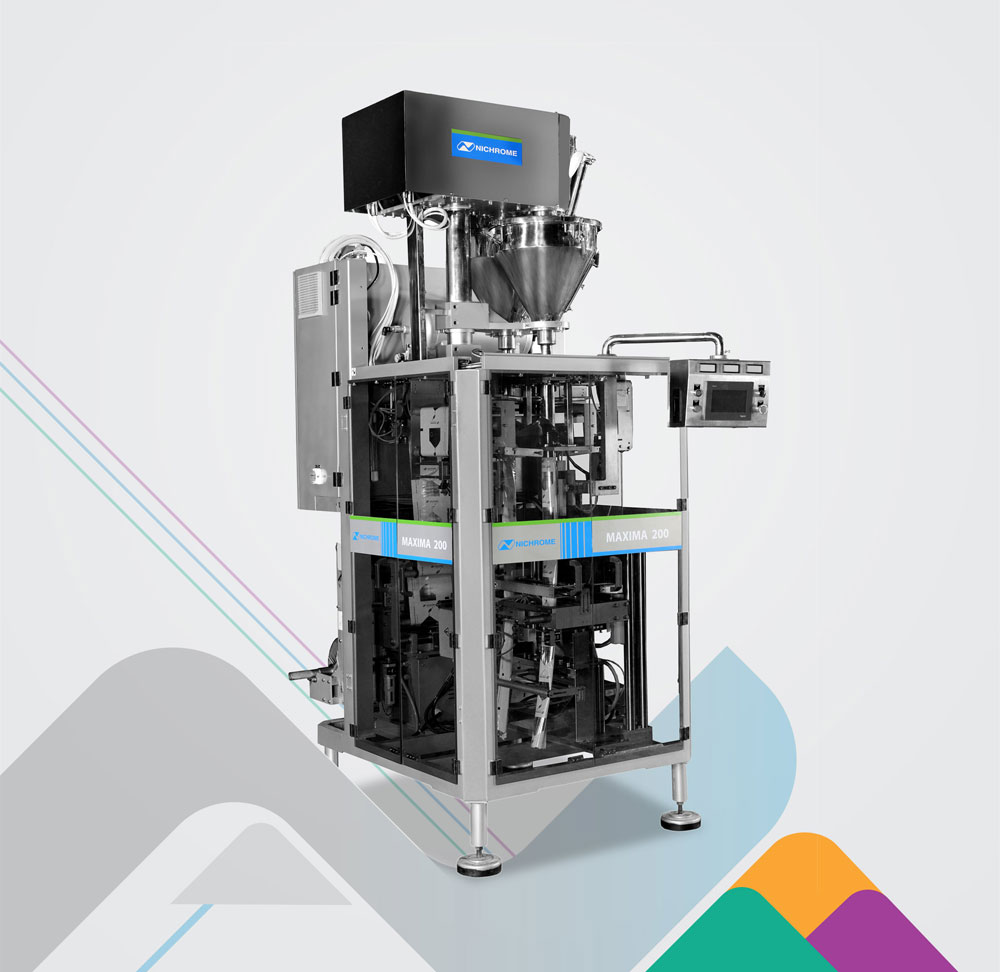

Maxima 200 with Servo Auger
With a compact design, MAXIMA 200/400 has a small footprint to occupy less space in factories. A PLC-based control system and optional interface with PC & data processors make the MAXIMA 200/400 a favourite with powder manufacturers.
As the name suggests, the MAXIMA 200 packs up to 200 pouches/min. while the MAXIMA 400 packs up to 400 pouches/min. Single or perforated chain of pouches can be produced.
The MAXIMA 400 has flexibility to pack different products with different quantities on each head.
Applications
Other Powders, Granular Products
Ground Spices
Blended Spices
Dairy Whitener
Pre-mix Powders
Soup Mixes
POUCH FORMATS
.png)
CSPP
CSPP Chain of Pouches
Technical Specifications
Bagger Speed |
Upto 200 packs/min (DRY RUN) |
Pack Volume Range |
25 to 550 cc |
Min. Pouch Size (WxL) |
70x70 mm |
Max. Pouch Size (WxL) |
130x200 mm |
Supply Voltage |
415 V AC 3 Phase, 50 Hz |
Connected Load |
8 KW |
Air Supply |
At 6 Bar |
Air Consumption |
22.5 Cu meter/hr at max speed |
Pouch Style |
CSPP |
Packaging Material |
Heat Sealable Laminate |
M/C Dimensions (WxDxH) |
1100 (W) x 1750 (D) x 2320 (H) |
Film Roll Dia. (Twin type) |
350 mm Max. |
