VFFS SERIES

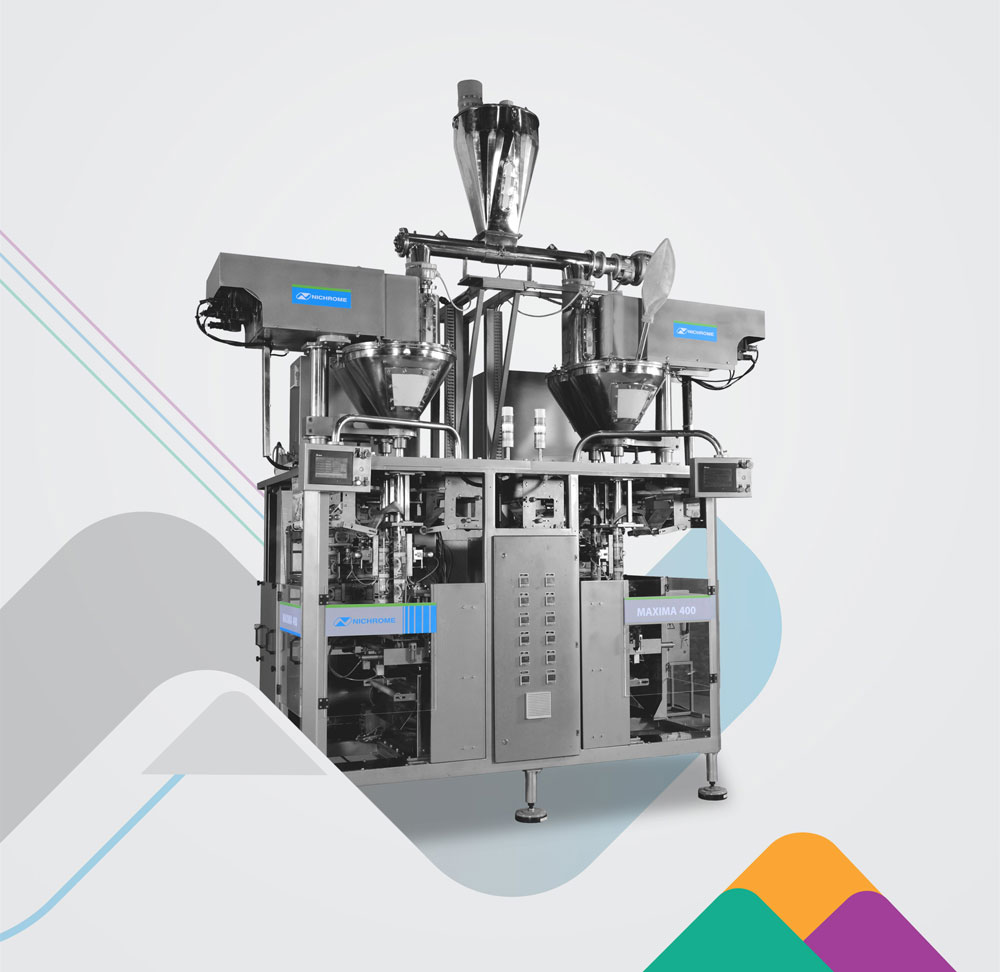

Maxima 400 with Servo Auger

With a compact design, MAXIMA 200/400 has a small footprint to occupy less space in factories. A PLC-based control system and optional interface with PC & data processors make the MAXIMA 200/400 a favourite with powder manufacturers.

As the name suggests, the MAXIMA 200 packs up to 200 pouches/min. while the MAXIMA 400 packs up to 400 pouches/min. Single or perforated chain of pouches can be produced.

The MAXIMA 400 has flexibility to pack different products with different quantities on each head.

Applications

Soup Mixes, Other Powders, Granular Products

Ground Spices

Blended Spices

Dairy Whitener

Pre-mix Powders

POUCH FORMATS

...

CSPP

...

CSPP Chain of Pouches

Technical Specifications

Bagger Speed

Upto 400 packs/min (DRY RUN)

Pack Volume Range

25 to 550 cc

Min. Pouch Size (WxL)

70x70 mm

Max. Pouch Size (WxL)

130x200 mm

Supply Voltage

415 V AC 3 Phase, 50 Hz

Connected Load

15 KW

Air Supply

At 6 Bar

Air Consumption

45 Cu meter/hr at max speed

Pouch Style

CSPP

Packaging Material

Heat Sealable Laminate

M/C Dimensions (WxDxH)

2200 (W) x 1750 (D) x 2320 (H)

Film Roll Dia. (Twin type)

350 mm Max.
