VFFS Series

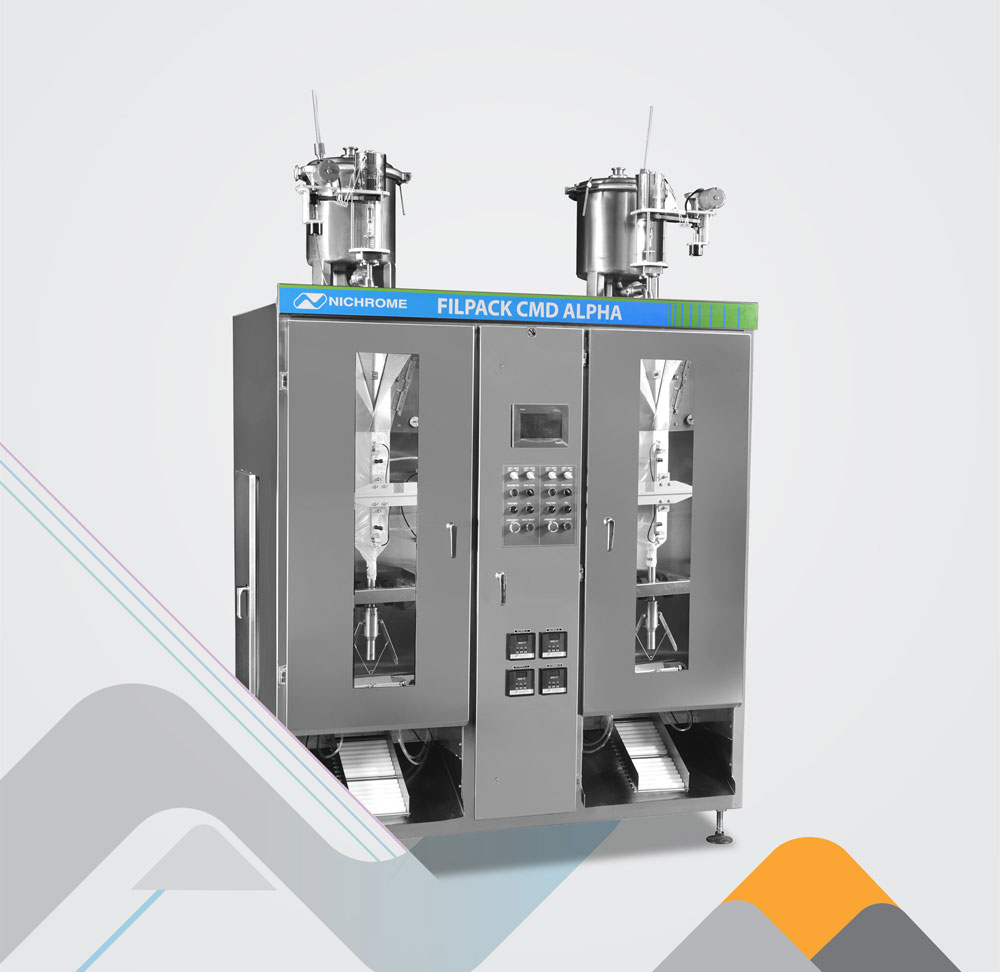

Filpack CMD ALPHA

FILPACK CMD Alpha is another efficient packaging solution for milk and other liquids. Built substantially shorter than conventional machines, it also occupies less floor space as no side opening is required.

The impulse seal system is controlled through solid state control technology, and there is a specially designed film roll unwinding mechanism for smooth bag pulling.

FILPACK CMD Alpha offers twin heads so you can pack two different products at the same time. You can even conduct maintenance on one track while the other is in operation.

Applications

Plain Milk

Flavored Milk

Lassi

Curd

Juice Drinks

Water

POUCH FORMAT

CSPP Liquid for 1 Ltr

CSPP Liquid for 500ml

Technical Specifications

Quantity	Pouch width
10 ml to 100 ml	75 mm
20 ml to 200 ml	100 mm
50 ml to 500 ml	125 mm
100 ml to 1000 ml	150 mm

Pack Size	Min. Pouch Length	Max. Pouch Length
10 ml to 100 ml	100 mm	250 mm
20 ml to 200 ml	100 mm	280 mm
50 ml to 500 ml	100 mm	280 mm
100 ml to 1000 ml	100 mm	280 mm
