stick pack pouch packaging machine

VFFS MULTILANE SERIES

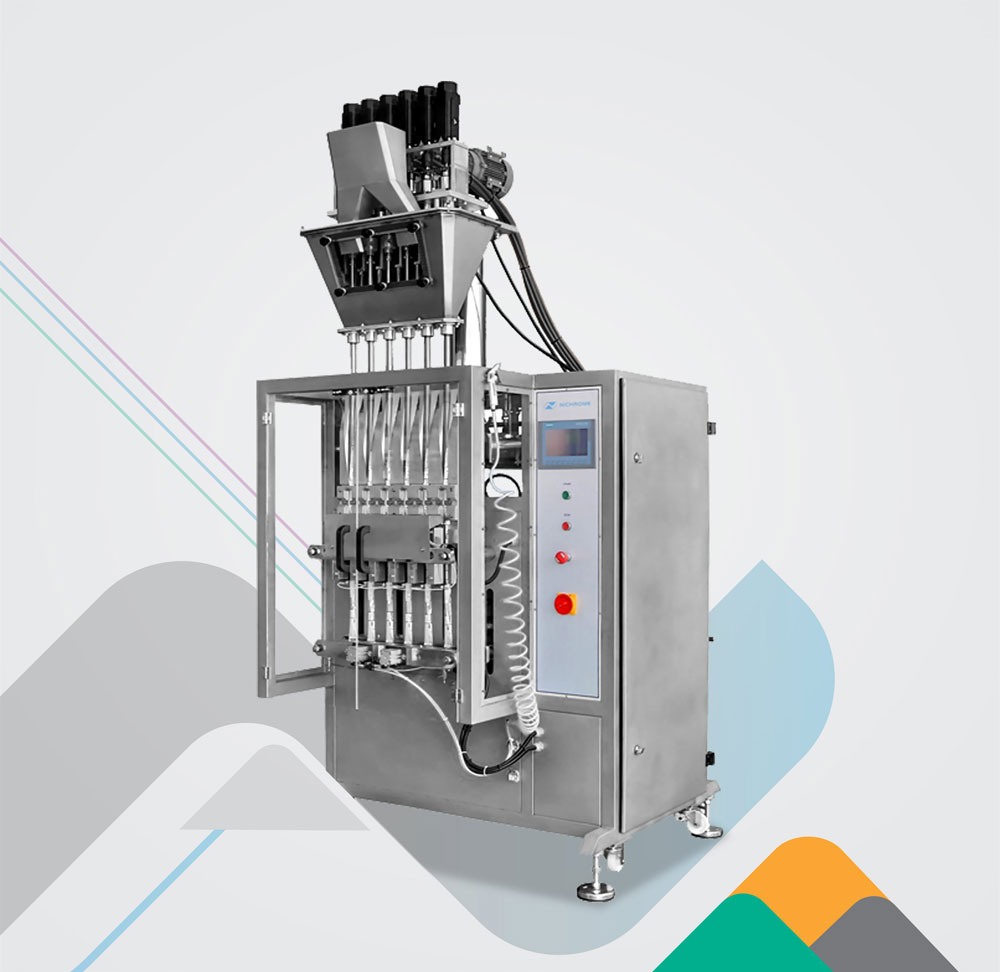

Multilane Stickpack with Multi Head Servo Auger Filler

For producers supplying non-free flowing powders such as milk powders, coffee powder, tea/coffee premixes, etc. to food chains, travel and hospitality industries, Nichrome's STICKPACK offers unmatched efficiency.

Nichrome's MULTILANE STICKPACK with Servo Auger Filler is a stick pack pouch packaging machine equipped with a CE certified PLC controller that makes it easy to operate and provides the necessary flexibility for product and format changes while maintaining the efficiency of the process.

Applications

Powder packaging machine

Milk Powders

Coffee packaging machine

Coffee Powder

Tea packaging machine

Tea & Coffee Premix

Powder filling machine

Nutraceutical Powders

Powder filling machine

Seasoning Powders

Powder filling machine

Spice Powders

Pharma Powder filling machine

Pharma Powders

Health Drink Powders Packaging filling machine

Health Drink Powders

POUCH FORMAT

Vertical Form Fill Seal Machines

Center Seal Stickpack

Powder packing machine

Center Seal Stick with V notch

Technical Specifications

Pack Style /format Centre Seal Stickpack
No. of lanes 2,3,4,5, 6 & 10 Lanes ( depending on stick width)
Quantity 2g to 20g.
Capacity 30 ~ 35 packs/ lane
Packing Material Heat Sealable laminate films like polyester/poly , Metalised polyester/poly or Aluminum foil poly etc.
Pack Size Range
Minimum Pack Size 25mmW x 50 mm L
Maximum pack Size 45mmW x 170 mm L
( Only dedicated single fixed width available)
Maximum Roll Width 600 mm max.
Maximum Roll Diameter 450 mm
Air consumption 6 bar, 300 litres/min.
Electrical Supply Stabilised 415 VAC , 3phase,4wire, 50 Hz , 5 KWH
Overall Machine dimension 1700 mm W x 1000 mm D x 2600 mm L
Weight of the machine ( approx.) 600kg
