Packaging Systems

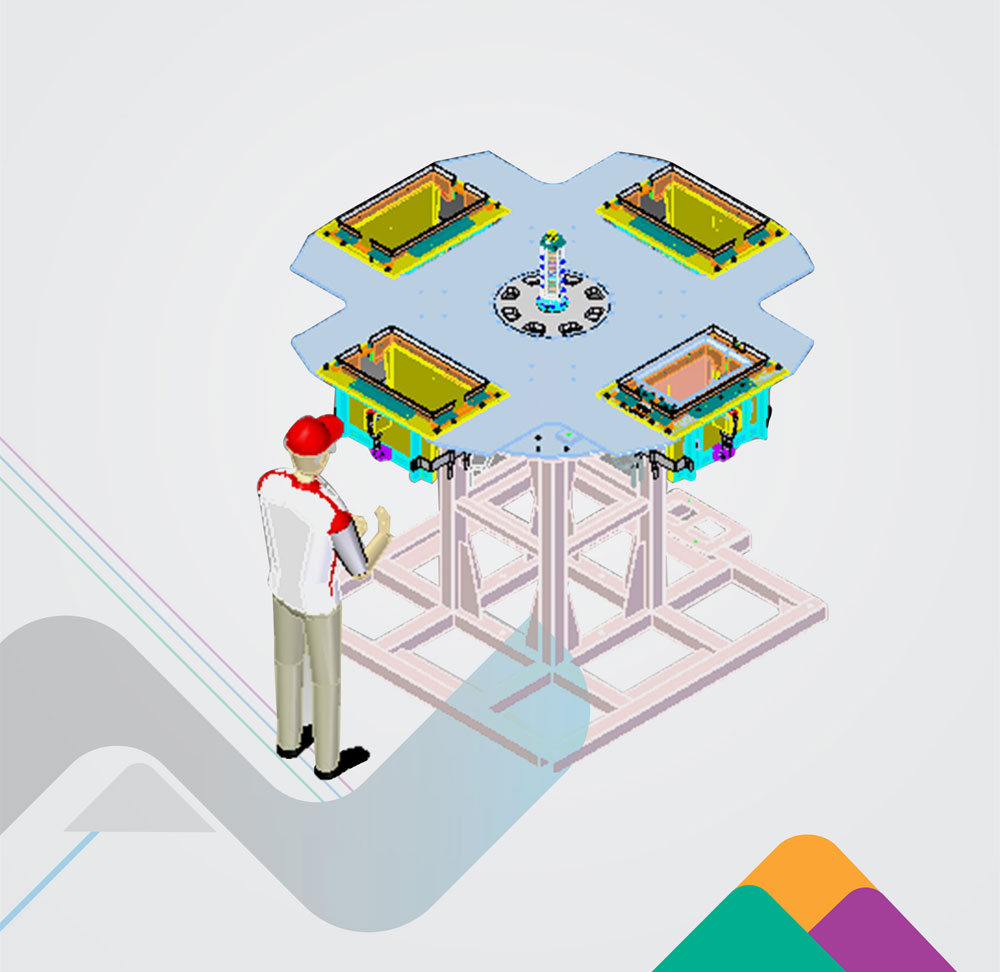

HDPE Bag Filling (Flexibale SR)

Nichrome’s Flexibale SR ensures maximum productivity with minimum manpower. This system requires only one operator for VFFS Machine, HDPE Bag Filling & Stitching! With this system, you can get consistent output with minimum footprint and investment!

Features:

  • Automatic Pouch counting and filling into HDPE bag
  • Pouch holding bucket provided
  • Manual bag clamping & declamping.
  • Ergonomic design
  • HDPE woven / PP bag can be used.
  • Machine construction available in SS304 , SS316 & MS Painted
  • PLC controlled
  • Fast changeover design for different size bag
  • Digital LCD touch screen displaying & setting.
  • Safety enclosures for rotary parts (optional)
  • Tower lamp provided for audio and visual signal

Applications

Food packaging machine

Food

Seeds packaging machine

Seeds

Agro Chemicals packaging machine

Agro Chemicals

Cement packaging machine

Cement

BAG FORMATS

Packaging Solutions

Premade HDPE/BOPP bag/ Woven bag

Technical Specifications

Working Principle

  • Pouches from VFFS machine are conveyed to Flexibale SR
  • Pouches are counted and dispensed into woven sacks (HDPE/BOPP)
  • Once desired number of pouches are counted and dispensed into HDPE bag, the base rotates and empty HDPE bag is ready to be filled!
  • While one HDPE Bag is filling, operator can remove filled bag and attach empty bag (this system has 4 stations to load HDPE bags)
  • Optional Stitching machine can be attached in line with this system and single operator can handle empty bag loading, filled bag unloading & stitching

Feeding System

  • Automatic Feeding

Line Speed

Synchronized to match VFFS machine of speed of upto 100ppm

Primary pouch weight (VFFS)

Upto 5kg

HDPE Bag Weight

Upto 50kgs

Secondary Bag Material

  • HDPE
  • BOPP

Product Contact MOC

SS304

Allied Equipment

  • Stitching
  • Bar Code Scanning
  • Printing
  • Labelling
  • Check Weighing
  • Palletising
  • Truck Loading
