VFFS MULTILANE SERIES

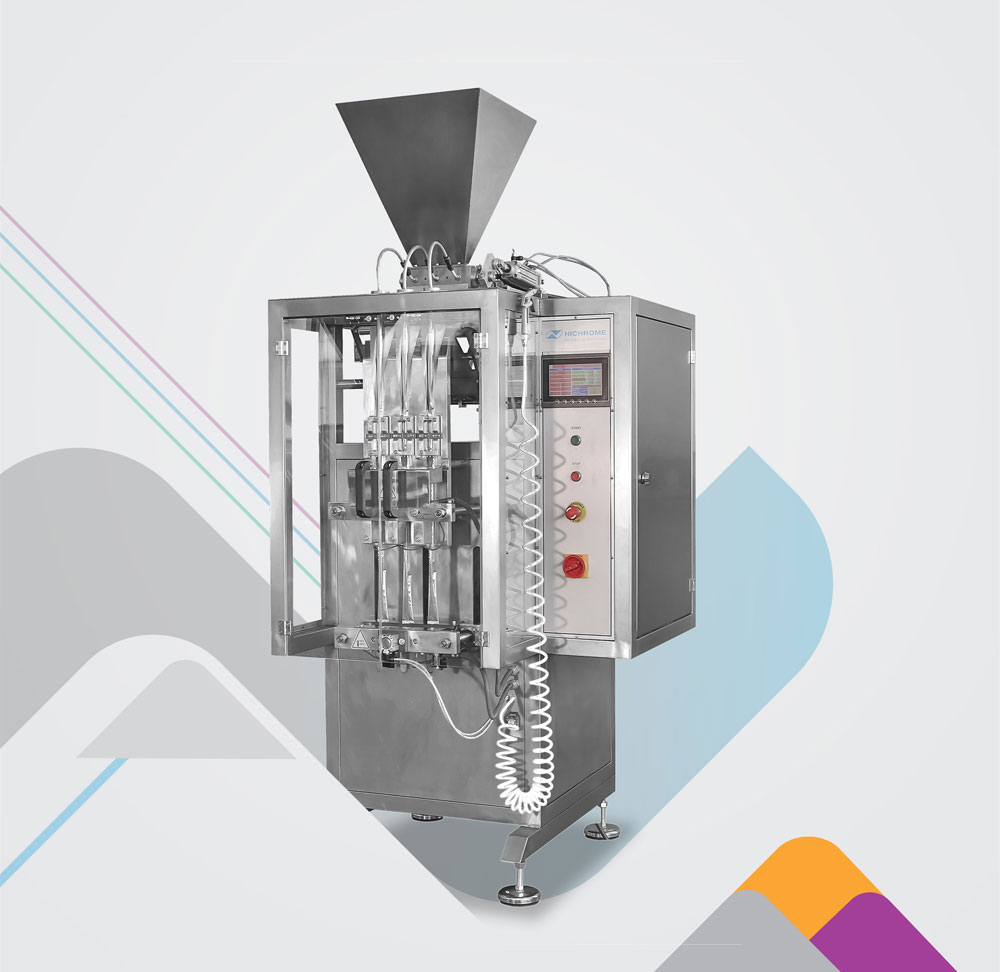

Multilane Stickpack with Multi-Piston Filler

Nichrome's Multilane Stickpack with Multi-Piston Filler is a stick pack pouch packaging machine especially innovated for packing liquids and viscous products in convenient, single-serve stick packs.

For packaging liquids and viscous products such as honey, ketchup, mayonnaise, mustard paste, jam, shampoo, etc., Nichrome's STICKPACK offers a stainless steel structure, pneumatically operated piston filler and longitudinal & cross-sealing jaw assemblies suitable for laminates. A CE certified PLC controller makes it easy to operate.

Applications

Mayonnaise, Mustard Paste, Jam, Water, Shampoo

Honey

Ghee

Ketchup

Olive Oil

POUCH FORMAT

...

Center Seal Stickpack

...

Center Seal Stick with V notch

Technical Specifications

Pack Style /format Centre Seal Stickpack
No. of lanes 3, 4, 5, 6 lanes
Quantity 5 ml ~ 30 ml
Capacity 90 ~ 240 sticks/min
Packing Material Heat sealable laminate films.
Pack Size Range 30 ~ 35 W (fixed/dedicated) & 50 ~ 170 mm L (Adjustable)
Maximum Roll Width 480 mm max
Maximum Roll Diameter 400 mm
Air consumption 6 bar, 300 litres/min
Electrical Supply Stabilised 415 VAC, 3 phase, 4 wire, 50 Hz, 3 KWH
Overall Machine dimension 1350 mm W x 1700 mm D x 2230 mm H
Weight of the machine ( approx.) 500kg
